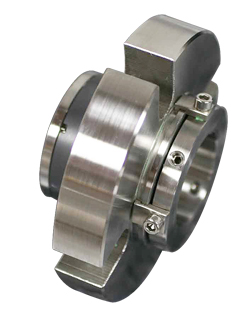

SSE 70 series are internally mounted easy installation mechanical seals. They are specially designed for quick & easy installation in ANSI pumps and other equipments assembled package include sleeve mechanical seal and gland plate. Due to positive drive eliminates slippage which protects shaft and sleeve from wear. They are very well suited in abrasive viscous media which contain solid and spring is isolated with pumpage. It is consider as universal (ideal) seal in vast variety of industrial application. They can be design in various ranges by changing material of seal components, they are self aligning.

Primary seal face Rotary Carbon, TC, Silicon Carbide Stationary TC, Silicon Carbide. Secondary seal Fluro Carbon, Aflas, Silicon, Nitrile Neoprene, Kalrez, Rubber, PTFE, GFT, FEP, TTV. Hardware AISI 316, alloy -20, Monel, Hastelloy-B/C.     Operating parameters Shaft diameter - d 20 to 100 mm. Pressure - p 17 bar. Temperature - t -20 to 180°C (253k to 453 k) Velocity - v 18 m/s.     Applications Paper and Pulp Industries, Slurry pump, Chemical plants, Food processing and Beverage plants, Marine, Mixer and Agitators, Paint and Ink, Thermal plants, Sewage plants, Pharmaceutical.
